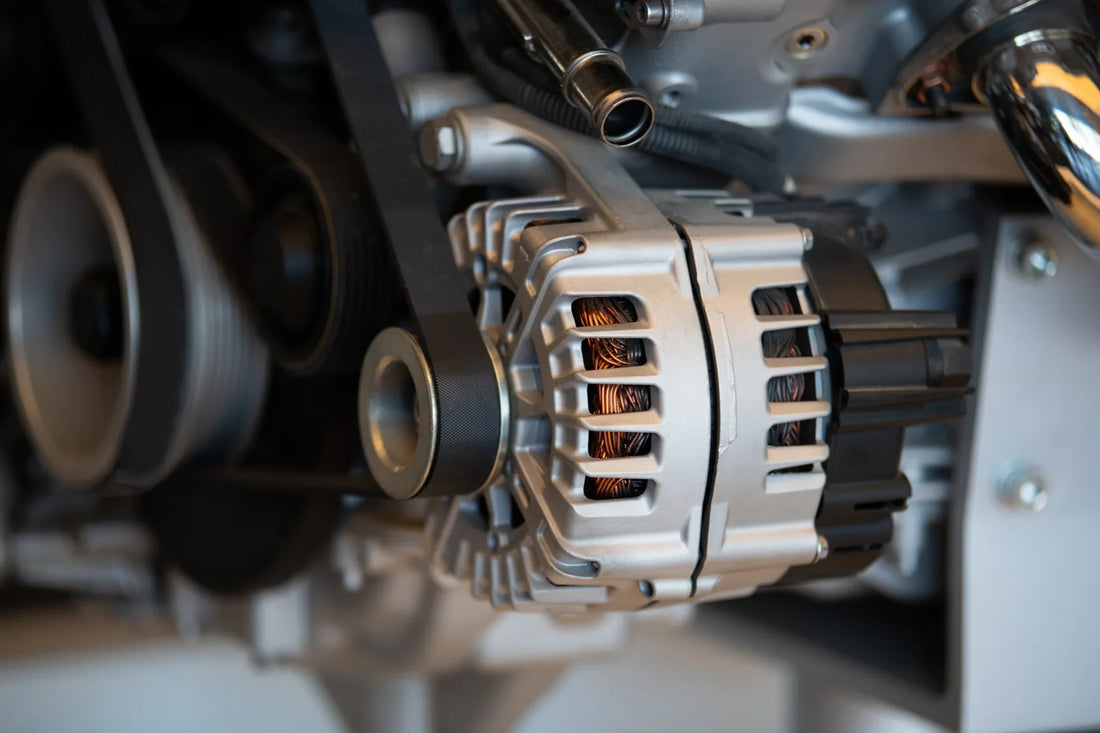

A Complete Guide to Installing Alternators and Dynamos Safely and Efficiently

Installing an alternator or a dynamo looks straightforward until one small mistake turns into a dead battery, damaged electronics a thrown belt or an avoidable injury. That risk matters more today than it did a decade ago. Vehicles are staying in service longer with the average age of vehicles in the United States reaching 12.8 years in 2025, which means more charging-system repairs are happening outside the new-vehicle warranty window. At the same time, charging systems themselves are getting more complex: start stop vehicles increasingly use AGM or EFB batteries, mild hybrids often pair 12V and 48V systems, and smart charging controls are far less forgiving of poor fitment, wrong battery matching, or sloppy wiring.

A safe, efficient installation is not just about bolting in a replacement unit. It is about confirming the right part, isolating electrical hazards, restoring belt alignment and tension correctly, and proving that the charging system works under real operating conditions. DENSO’s installation guidance captures that mindset well disconnect the negative battery cable first, compare the replacement physically to the original, set belt tension and fastener torque to the manufacturer’s specification, reconnect wiring correctly and verify charging output after the job is complete.

Why correct installation matters more than most people think

A charging unit does far more than recharge the battery. It stabilizes system voltage for lighting, ignition, control modules and accessories. On older vehicles a misinstalled dynamo can overcharge or undercharge because regulator setup is critical. On modern vehicles, a weak installation can trigger low voltage complaints that look like unrelated faults: dim lights, communication errors, battery warnings, hard starting or short battery life. Bosch notes that generators and alternators must supply vehicle loads and charge the battery safely, while Delco Remy warns that voltage loss in the charging circuit slows battery recharge and can leave batteries partially discharged, which can then damage the starter and affect other electrical components.

That matters commercially as well. S&P Global’s 2025 data on an aging vehicle fleet points to growing aftermarket repair demand, while Battery Council International says all vehicle powertrains still depend on low-voltage batteries for starter and auxiliary duties, often with multiple batteries per vehicle. In other words, even as electrification expands, low-voltage charging-system service is not disappearing. It is becoming more specialized.

Alternator vs. dynamo: the installation difference that changes the job

In practical workshop terms, the installation workflow is similar for both: isolate power, remove the belt, swap the unit, reconnect correctly, tension the belt, then test output. The difference is in regulation and application. Modern alternators typically have integrated regulation or vehicle-controlled regulation. Older dynamos, especially on vintage cars, tractors, and motorcycles, rely more heavily on external regulation, and Bosch notes that voltage and current must be adapted by a regulator to prevent damage to the generator and electrical consumers.

That means a dynamo installation should be treated as a restoration-style electrical job, not just a parts swap. You need to verify regulator compatibility, terminal identity, grounding, and original-system polarity requirements from the OEM or restoration manual before powering the system back up. DENSO also makes the broader point that general instructions are only a baseline and the vehicle manufacturer’s service manual should govern application-specific details.

Safety first: isolate energy before touching the charging system

The most common avoidable mistake is treating an alternator swap like a purely mechanical repair. It is an electrical repair with mechanical consequences. DENSO’s first removal step is to disconnect the negative battery cable, warning that injury or equipment damage may occur if this is skipped. OSHA’s electrical-safety rules likewise require de-energizing circuits and equipment before work, with locks and tags applied to disconnecting means where applicable in professional maintenance settings.

Battery handling is its own hazard. OSHA requires suitable eye and face protection where workers are exposed to acids or caustic liquids, and its battery-charging rules specify face shields, aprons, and rubber gloves for workers handling acids or batteries, plus facilities for quick drenching of the eyes and body nearby. NIOSH analyses of large-battery incidents also found many injuries during lead-acid battery maintenance and repair, including arc-flash burns, acid exposure, crushed hands, and lifting-related strains; one review identified 128 maintenance-and-repair incidents among 324 large-battery reports.

Before you start, gather:

• Safety glasses or a face shield, insulated hand protection appropriate to the job, and basic spill-cleanup materials for battery work.

• The exact replacement unit, vehicle service information, and the correct belt-routing diagram.

• A multimeter and, ideally, a load tester or charging-system tester for post-install verification. GS Yuasa’s latest testers now explicitly support both standard and smart alternator tests on 12V and 24V systems, reflecting how common smart charging has become.

Pre-install checks that prevent repeat failures

A surprising number of “bad alternators” are actually bad fits, weak batteries, poor grounds, or belt-drive problems. DENSO recommends verifying that the battery is fully charged at 12.6 volts before installation and checking that the posts and cables are clean and not frayed. It also advises physically comparing the replacement unit to the original, including pulley type, connector locations, rear housing orientation, and pivot and adjuster hole positions.

That comparison step is more important in 2026 than many technicians assume. Battery Council International reports continued growth in AGM and EFB battery use, and GS Yuasa notes that AGM and EFB batteries are specifically built for the heavier cycling demands of start-stop systems. Installing a new alternator into a vehicle with the wrong battery type, a deeply discharged battery, or unresolved cable corrosion often leads to comeback repairs because the charging unit is forced to compensate for faults elsewhere.

Check these items before removing the old unit:

• Battery condition and state of charge.

• Belt condition: worn, oily, glazed, stretched, or cracked belts should be replaced.

• Pulley alignment and bearing condition.

• Main charge cable, ground path, and connectors for heat damage or corrosion.

Step-by-step installation workflow

1. Disconnect the battery correctly

Start by disconnecting the negative battery cable. DENSO lists this as the first removal step and explicitly warns against skipping it. On shop-managed fleets or industrial equipment, add lockout/tagout procedures where the maintenance environment requires them.

2. Identify every wire before removal

Do not rely on memory. DENSO instructs installers to identify each wire and note the connection locations on the alternator before disconnecting them. This matters on systems with sense wires, warning-lamp circuits, LIN/PWM control, or external regulators. Misplaced wiring can create charging faults that look like a defective replacement unit.

3. Remove belt tension without forcing components

Loosen the pivot and adjustment fasteners as required, then remove the drive belt. If brackets, plugs, or connectors are removed, note their positions before taking the unit off. DENSO and DENSO Europe both caution against prying or striking the alternator housing to set belt tension. That warning is practical: housing damage, bracket distortion, and bearing side-load are common causes of early failure after an otherwise clean installation.

4. Match the new unit physically before bolting it in

Compare pulley profile, connector orientation, mounting ears, and housing clocking to the original. This is the moment to catch wrong-pulley diameter, wrong connector indexing, or case mismatch. DENSO specifically calls this out before the unit is installed.

5. Install loosely first, then align the belt path

Fit the replacement unit into the bracket and reinstall pivot and adjusting bolts, but do not fully tighten them yet. Install the belt and check pulley alignment before final tensioning. A charging unit that is electrically perfect will still fail prematurely if the belt tracks out of plane.

6. Set belt tension to the manufacturer’s specification

This is where many otherwise competent installs go wrong. DENSO says belt tension must be set to the manufacturer’s specification and mounting bolts torqued to the manufacturer’s torque specification. Delco Remy’s diagnostic flow for undercharge complaints also points technicians back to checking the drive belt and tightening it to manufacturer tension specs before condemning the alternator.

Too loose, and the belt slips under load, producing low charging voltage, squeal, glazing, and heat. Too tight, and bearing loads rise, which shortens the life of the alternator, tensioner, and idlers. This is one of the few steps where “feel” is inferior to spec.

7. Reconnect wiring and battery terminals carefully

Reconnect the removed wires to their correct locations, then reconnect the battery cable and torque the battery terminal to the manufacturer’s specification. Clean contact surfaces matter. Delco Remy’s manual emphasizes that excessive voltage loss in cables and connections harms charging performance; it also directs technicians to repair circuits with excessive voltage drop.

Post-install testing: where professionals separate a real repair from a guess

A charging-system repair is not finished when the warning lamp goes out. It is finished when measured voltage and output make sense for the application.

DENSO’s basic check is simple and useful for light-duty work: battery voltage before starting should be 12.6 volts; after 10 minutes of idling it should be above 13.0 volts; and at about 2,000 rpm, voltage should rise without exceeding 14.8 volts, while exact specs should still be confirmed against the manufacturer’s service data.

For heavier-duty systems, Delco Remy uses a broader ceiling: alternator output voltage should not exceed 15.5 volts on a 12V system, and output current should be within 10% of the alternator’s rated output. It also stresses that charging-circuit losses reduce charge rate and can leave batteries partially discharged.

A solid post-install routine looks like this:

• Verify the charge lamp behavior or dashboard voltage indication.

• Measure standing battery voltage before start-up.

• Measure charging voltage at idle and around 2,000 rpm.

• Turn on major electrical loads and verify the system remains stable.

• Check for belt noise, pulley wobble, abnormal heat, and connector warmth.

• On commercial or high load systems, test cable voltage drop and output current if symptoms persist.

Common mistakes that shorten alternator or dynamo life

The biggest installation errors are rarely dramatic. They are usually small oversights that compound over a few days or weeks.

One is installing a new unit on top of a weak battery. DENSO’s insistence on a fully charged 12.6V battery before installation is not a formality. A deeply discharged battery can make a new alternator run at high output for extended periods, increasing heat and reducing service life. Another is ignoring the belt and pulley system. DENSO recommends belt replacement when belts are worn, oily, glazed or cracked and Delco Remy’s diagnostic path treats the drive belt as a primary cause of undercharge symptoms.

A third is failing to respect the vehicle’s electrical architecture. BCI and GS Yuasa both show that modern vehicles increasingly use AGM, EFB, multi battery, start-stop, and smart-charging configurations. In these vehicles, it fits and it charges is not enough; the replacement unit must match the vehicle’s control strategy and battery type.

What has changed in 2024–2026

The charging-system landscape is shifting in two directions at once. First, the global move toward electrified vehicles is accelerating. The IEA reports that electric car sales exceeded 17 million in 2024 more than 20% of all new cars sold worldwide, and expects sales to surpass 20 million in 2025 roughly one-quarter of total sales. Second, low voltage systems are still expanding in importance not shrinking. Battery Council International says modern vehicles across powertrains still require low voltage batteries, often multiple units, while SEG Automotive notes that 48V mild-hybrid systems can replace the conventional generator in the belt position and deliver real-world fuel savings of up to 15% in P0 layouts.

For installers, that means the future is not alternators go away. The future is a split market:
classic and aging ICE vehicles still need conventional alternator and dynamo service, while newer vehicles increasingly need battery type awareness, smart charging diagnosis and familiarity with 12V/48V integration.

Conclusion

A safe, efficient alternator or dynamo installation is really a system level repair. The best technicians do not just replace a charging unit they verify the battery, inspect the belt drive preserve wiring integrity, respect OEM specs and prove the repair with voltage and output testing. That approach reduces comebacks, protects electronics and extends the life of the new unit.

Looking ahead, charging system work is only getting more valuable. Older vehicles are staying on the road longer, while newer vehicles are adding smarter low voltage architectures more auxiliary loads and more 12V/48V integration. The shops and technicians who win in that environment will be the ones who treat installation as a precision procedure not a quick swap.

FAQs

What does an alternator do in a vehicle?

An alternator charges the battery and powers the vehicle’s electrical systems while the engine is running.

How is a dynamo different from an alternator?

A dynamo is an older type of generator, while an alternator is more efficient and commonly used in modern vehicles.

Is it necessary to disconnect the battery before installation?

Yes, disconnecting the negative battery terminal helps prevent shocks, short circuits and component damage.

Why is belt tension important after installing an alternator?

Incorrect belt tension can cause slipping, poor charging, noise or early bearing failure.

Can a weak battery affect a new alternator?

Yes, a weak or deeply discharged battery can overload the alternator and shorten its lifespan.

How can I tell if the alternator is charging properly after installation?

Use a multimeter to check voltage after startup most systems should show charging above normal battery resting voltage.

Should wiring be checked during alternator replacement?

Yes, damaged, loose or corroded wires can reduce charging performance and create repeat problems.

What are common mistakes during alternator or dynamo installation?

Common mistakes include wrong wiring, poor belt alignment, incorrect tension and skipping battery checks.

Do modern vehicles need special care during alternator installation?

Yes, many modern vehicles use smart charging systems, AGM/EFB batteries and sensitive electronics.

When should a belt be replaced during installation?

Replace it if it is cracked, glazed, stretched, noisy or contaminated with oil.
