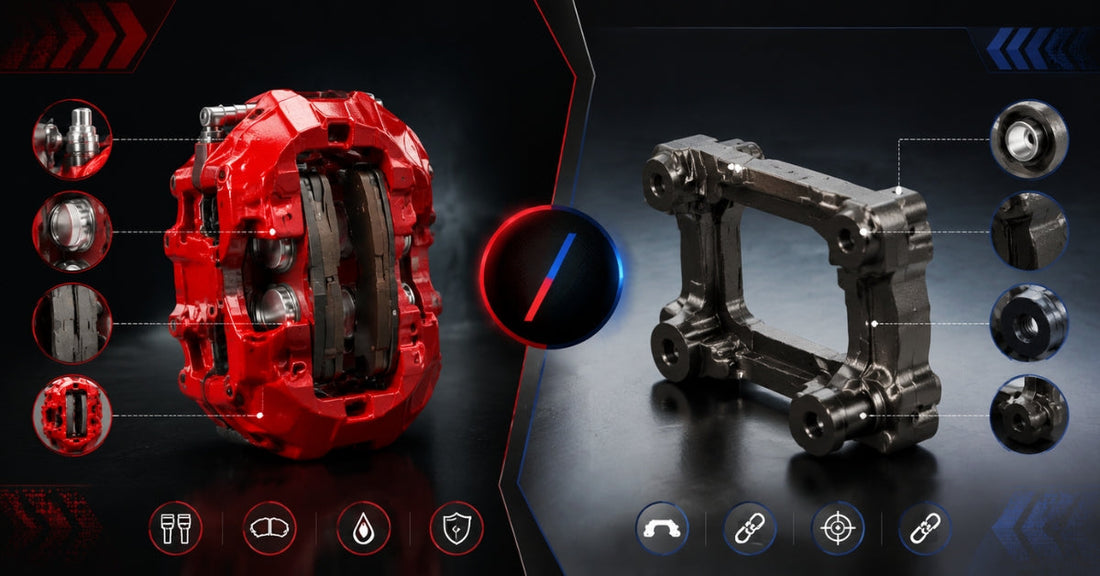

Brake Caliper vs Caliper Carrier: What Is the Difference?

If you've ever tried to order a replacement caliper online, you've probably hit the same wall a lot of people do. One listing shows a chunky metal part with a piston. Another shows a similar-looking bracket for half the price. Both are described as fitting your car. So which one do you actually need?

The confusion is understandable, because these two parts live right next to each other, do related jobs, and are often lumped together in conversation. But they aren't the same thing, and ordering the wrong one can mean a returned parcel, a wasted afternoon, or a garage bill that didn't need to happen. Knowing which is which saves you money and stops you chasing a fault in the wrong place.

Here's a plain breakdown of what each part does, how they differ, and why the distinction matters more than most people expect.

What a brake caliper actually does

The brake caliper is the working half of a disc brake. When you press the pedal, hydraulic fluid pushes one or more pistons out of the caliper body. Those pistons force the brake pads against the spinning disc, and the friction slows the car down. That's the whole job in a sentence.

Most cars on UK roads use what's called a floating (or sliding) caliper. It has a piston on one side only. When the piston pushes the inner pad against the disc, the reaction force pulls the whole caliper body sideways on a pair of greased pins, dragging the outer pad in to meet the disc from the other side. It's a neat bit of engineering that lets one piston clamp both pads.

Performance and larger cars sometimes use fixed calipers instead, with pistons on both sides and nothing that slides. These are bolted solidly in place and squeeze both pads at once. They stop better and cost more, which is why you'll mostly find them on hot hatches, big saloons, and anything with a sporting badge.

The key thing to hold onto: the caliper is the part that moves and grips. It contains the pistons, the seals, and the rubber dust boots that keep road grime out.

What the caliper carrier is (and why it's easy to overlook)

The carrier goes by a few names. Some call it the caliper bracket, some the anchor bracket, some the mounting frame. It's the same part, and its job is quiet but important.

The carrier is the fixed frame that bolts to the hub or steering knuckle. It doesn't move, it doesn't touch hydraulic fluid, and it has no pistons. What it does is hold everything in position. The brake pads sit in slots machined into the carrier, so the carrier is what keeps the pads square to the disc. On a floating setup, the carrier also holds the two slide pins that the caliper body glides along.

Think of it this way. If the caliper is the hand doing the squeezing, the carrier is the wrist and forearm holding that hand in exactly the right spot. Without the carrier, the caliper would have nothing to bolt to and the pads would have nowhere to sit.

Because it just sits there and rarely gets a mention when someone says "my brakes are sticking," the carrier is the part people forget exists. Right up until it's the thing that's actually gone wrong.

The key differences at a glance

Set side by side, the two parts sort themselves out quickly:

• The caliper moves; the carrier stays put. On a floating brake, the caliper body slides on pins. The carrier is bolted rigidly to the hub and never shifts.

• The caliper is hydraulic; the carrier is purely mechanical. Fluid, pistons and seals all live in the caliper. The carrier never sees a drop of brake fluid.

• The caliper does the clamping; the carrier does the holding. One generates the force, the other keeps the pads and caliper aligned to the disc.

• They fail for different reasons. A caliper usually fails from within (a stuck piston or a fluid leak). A carrier usually fails from corrosion and seized slide pins.

That last point is where a lot of money gets spent in the wrong place, so it's worth going deeper.

Why the distinction matters when you're buying parts

This is where the two parts trip people up most. When you buy a replacement caliper, especially a reconditioned or remanufactured one, the carrier may or may not be included. Some sellers supply the caliper on its own and expect you to reuse your existing carrier. Others sell a "caliper and carrier" as a matched pair. The listings don't always spell it out.

Picture the common scenario. Your nearside front caliper has seized, so you order a reconditioned replacement to save a few pounds over new. It arrives as a bare caliper body. But your old carrier is rusted solid with slide pins that won't budge, which is often why the brake was dragging in the first place. Now you're stuck: the new caliper is useless without a usable carrier, and you're back online ordering the bracket you assumed came in the box.

The reverse catches people too. Someone orders a full caliper-and-carrier assembly when their actual caliper was fine and only the slide pins had seized. They've paid for a whole hydraulic unit they didn't need.

Before you check out, work out which of these you're actually buying, and check whether your existing carrier is worth keeping.

How each part fails, and how to tell them apart

The symptoms of a bad caliper and a bad carrier overlap a lot, which is exactly why they get muddled. A dragging brake, uneven pad wear, a pull to one side, a smell of hot brakes after a short drive: any of these can point to either part. The trick is knowing where to look.

A caliper is failing when the piston sticks in its bore, usually from corrosion or a perished seal, so it won't retract properly and the pad stays pressed against the disc. You might also see brake fluid weeping from around the piston or a torn dust boot letting water in. If one pad on an axle is worn down to nothing while its partner still has plenty of material, a seized piston is a strong suspect.

A carrier is failing when the slide pins seize in their bores. On a floating brake, if those pins can't slide freely, the caliper can't centre itself over the disc. The result is the same uneven wear and dragging, but the cause is mechanical, not hydraulic. Badly corroded carriers can also let the pads sit loose or at an angle, which you'll sometimes hear as a rattle or clonk over bumps.

The practical test is simple. With the wheel off, unbolt the caliper and check whether the slide pins pull out and push back smoothly with fresh grease. If they're stiff or rusted solid, your carrier (or at least its pins) is the problem. If the pins are fine but the piston won't wind back, the caliper is the culprit. Getting this right before you order parts is the difference between one repair and two.

What this means for repair costs and decisions

Once you know which part has gone, the money decision gets easier.

A seized slide pin doesn't always need a new carrier. Often a service kit with fresh pins, rubber boots and grease will sort it, and that's a cheap fix. If the carrier itself is heavily corroded or the pin bores are worn oval, then replacing the bracket makes sense. Either way, it's usually the smaller bill.

A failed caliper is the bigger job. If the piston has seized or it's leaking, that unit needs replacing or rebuilding, and it's sensible to do the caliper on the other side of the same axle at the same time so both brakes behave consistently. Whenever a caliper comes off, it's also the natural moment to fit new pads and check the disc, since you're already in there.

The mistake to avoid is throwing a full assembly at a fault that a ten-pound pin kit would have fixed, or nursing a tired caliper along because you only replaced the bracket. Match the part to the actual failure and you spend once, not twice.

The bottom line

The caliper and the carrier are a partnership. One clamps, one holds, and a healthy brake needs both doing their job. The caliper is the hydraulic part with the piston that presses the pads onto the disc. The carrier is the fixed bracket that bolts to the hub, positions the pads, and (on most cars) carries the pins the caliper slides on.

Get those two straight and everything else falls into place: you'll diagnose a dragging brake correctly, order the right part the first time, and know whether you're facing a quick pin kit or a proper caliper replacement. That's a small bit of knowledge that pays for itself the moment you're stood at the parts counter or scrolling a listing at midnight.

FAQs

Is the caliper carrier the same as the caliper bracket?

Yes. Carrier, bracket, and anchor bracket all refer to the same fixed mounting frame that bolts to the hub and holds the pads and slide pins.

Can I replace just the carrier without touching the caliper?

Often, yes. If your caliper is healthy and only the slide pins have seized, a new carrier or a slide pin service kit will fix it without replacing the hydraulic caliper.

Does a replacement caliper come with the carrier?

Not always. Some are sold as bare caliper bodies, others as a caliper-and-carrier set. Check the listing carefully before ordering so you get the right combination.

How do I know if the problem is the caliper or the carrier?

Take the wheel off and check the slide pins. If they're seized or rusted, it's a carrier issue. If the pins move freely but the piston won't retract, it's the caliper.

Should I replace calipers or carriers in pairs?

Replace calipers in axle pairs for even braking. Carriers and slide pins can be done individually, as long as the pins on the other side are still moving freely.
