FOR BMW X4 30i xDrive G02 M SPORT DIMPLED GROOVED FRONT BRAKE DISCS PAIR 348mm X 36mm
FOR BMW X4 30i xDrive G02 M SPORT DIMPLED GROOVED FRONT BRAKE DISCS PAIR 348mm X 36mm
Available in Stock: 6 left
- Free UK Shipping
- 30 Day Return Policy
- Secure Payment
Description
Description

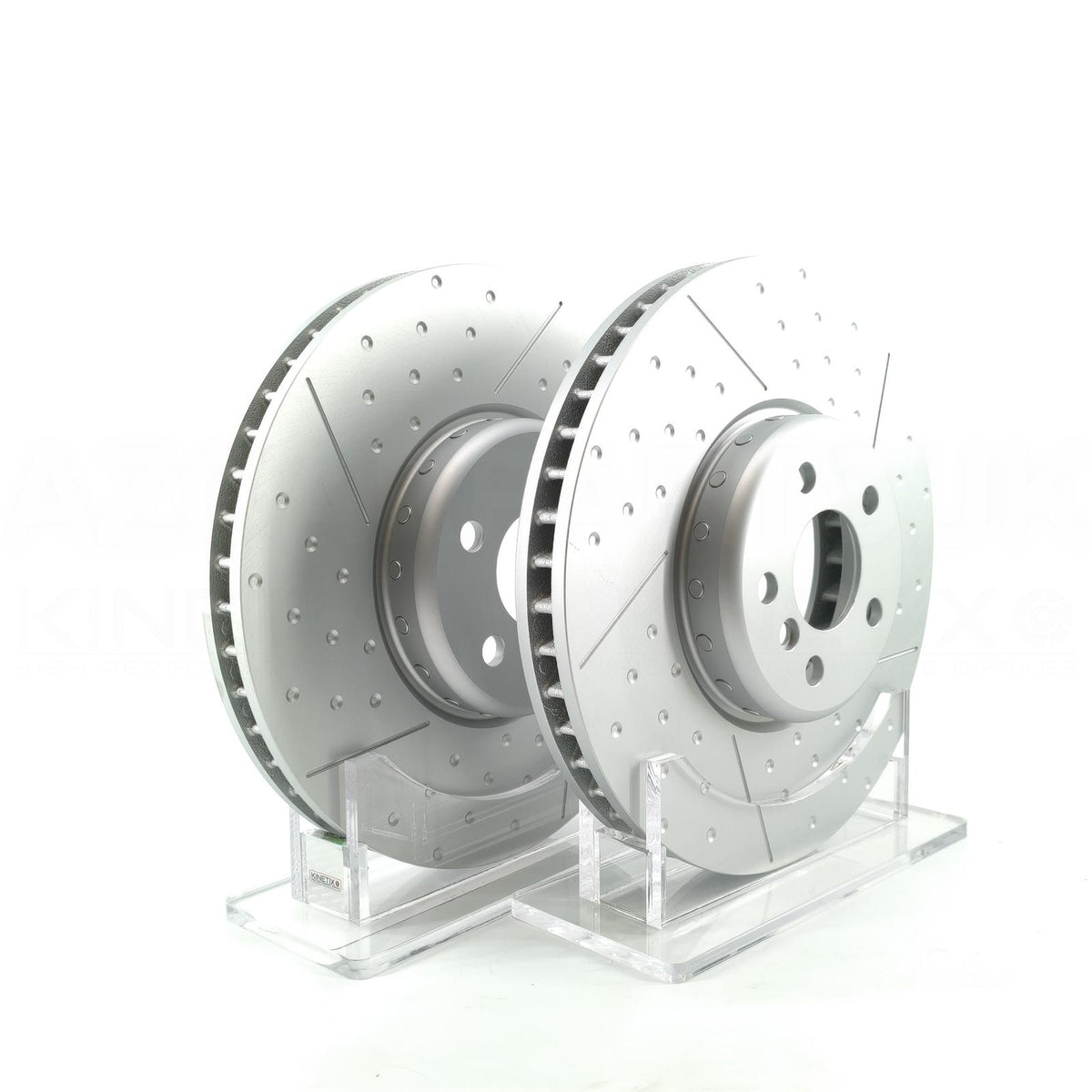

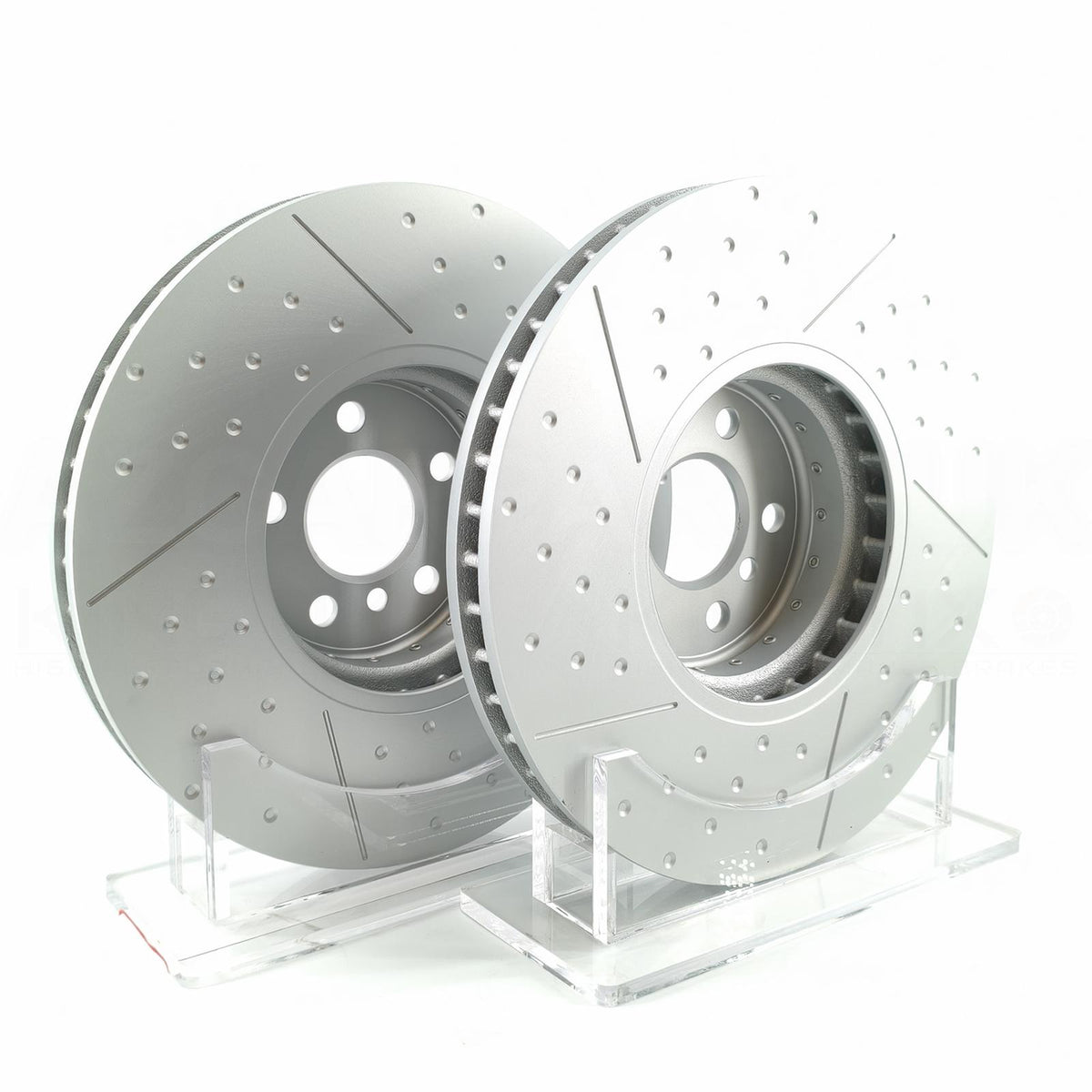

Front Axle Pair: Two-Piece Composite Brake Discs (348x36mm)
Engineered Performance & Architecture
The Kinetix Performance Two-Piece Composite Brake Disc System provides high-performance British braking architecture engineered specifically for heavy, fast executive saloons, tourers, and performance SUVs.

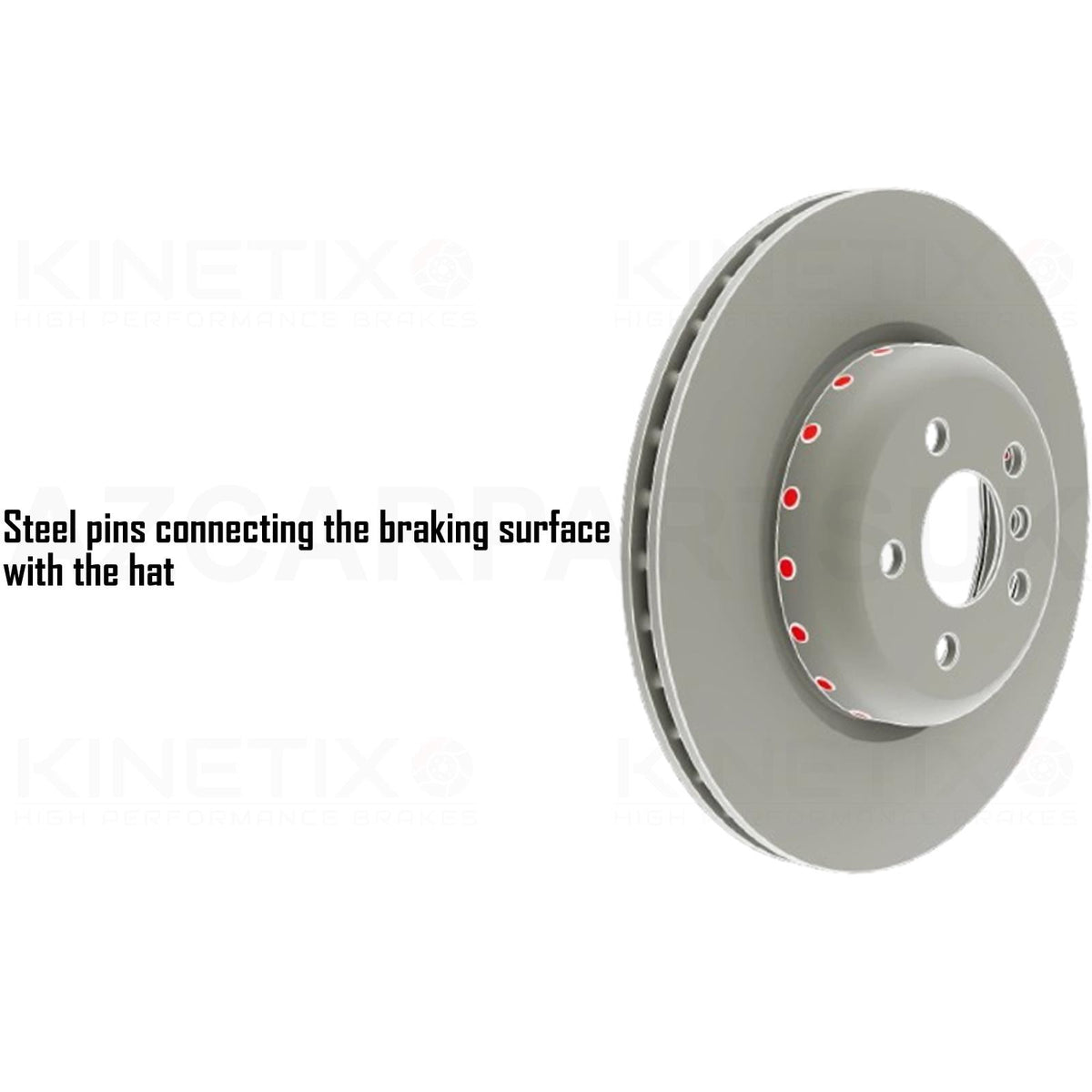

Each rotor utilizes an OE-style two-piece composite construction: a stamped, lightweight aluminium centre hat joined securely to a high-carbon cast iron friction ring via high-strength steel drive pins/rivets. This bi-metallic composite design reduces critical rotational unsprung mass off the front axle by up to 20% compared to standard solid cast-iron discs, while insulating the wheel hub and bearings from excessive friction heat.
Lightweight aluminium hat pinned to a cast iron ring to slash unsprung rotational mass without sacrificing structural rigidity.
High-carbon metallurgy delivers outstanding thermal capacity, dampens vibration, and resists disc distortion under hard braking.
Internally vented with handed cooling vanes (left and right specific) to actively draw air across the rotor core.
Durable protective surface finish shields non-friction surfaces from road grime, salt, and rust behind open alloy wheels.
Disc Specifications (Axle Pair)
| Brand | Kinetix Performance |

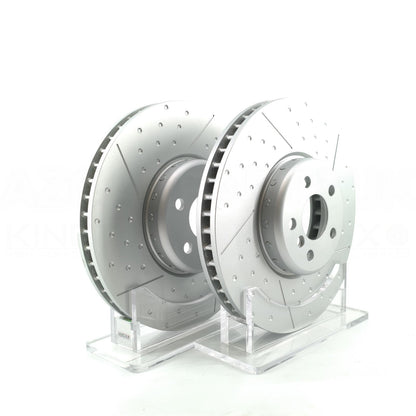

| Package Includes | 1x Left-Hand (N/S) Disc + 1x Right-Hand (O/S) Disc |
| Cross-Reference Equivalents | 150.2936.32 (LH) / 150.2937.32 (RH) | 09.D094.13 (LH) / 09.D095.13 (RH) |
| Fitting Position | Front Axle (Complete Left & Right Pair) |
| Disc Construction |
Two Piece Composite / Bi-Metallic (Aluminium Hat & High-Carbon Cast Iron Ring)

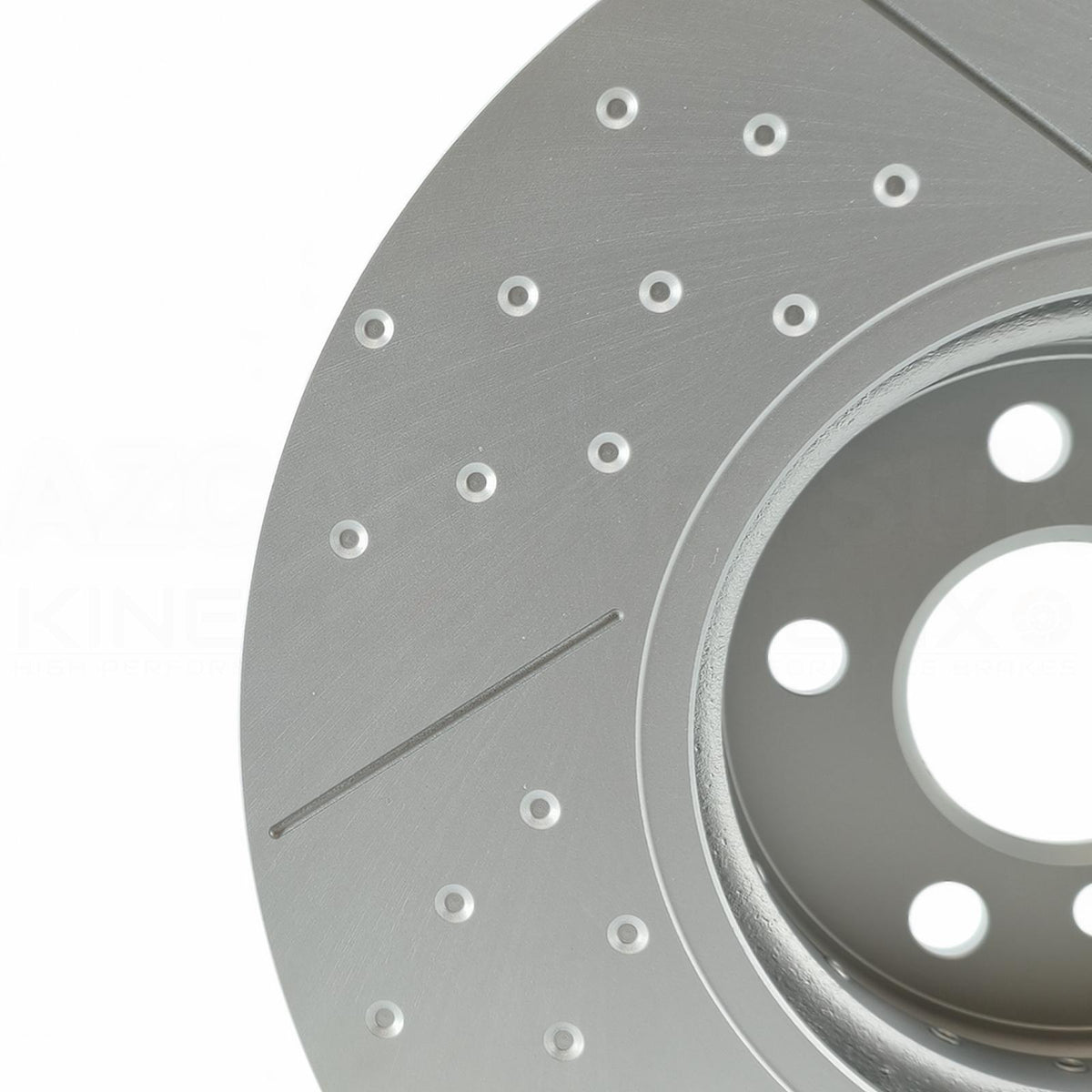

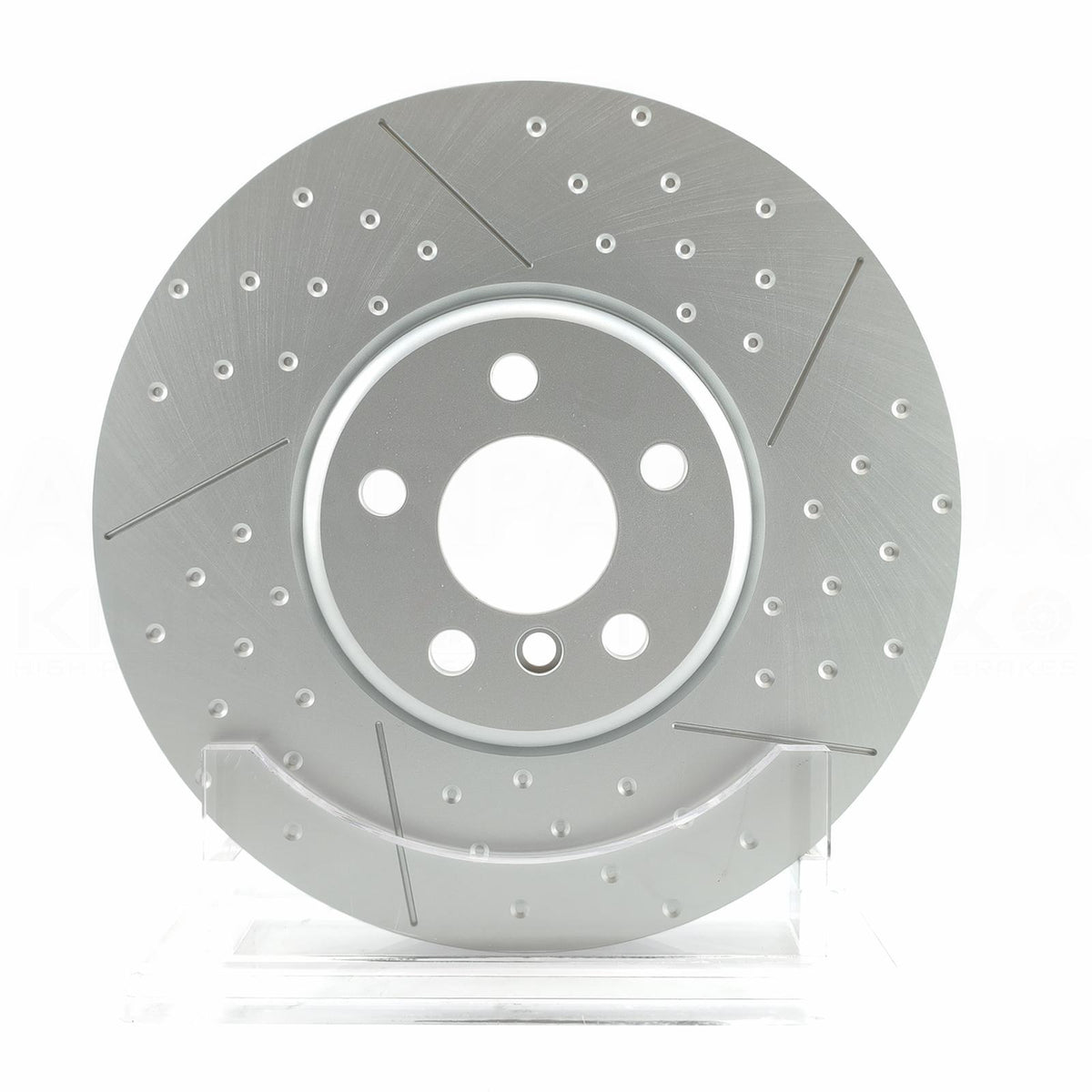

Dimpled Surface / Grooved Surface
|
| Outer Diameter (Ø) | 348mm |
| Disc Thickness | 36mm |
| Minimum Wear Limit | 34mm |
| Overall Height | 66mm |
| Centring Hole Diameter | 66.5mm |
| Bolt Hole Circle (PCD) | 5 x 112 mm |
| Ventilation | Internally Vented (Directional Handed Airflow) |
OE Part Number Interchange
Direct interchange with original factory BMW and Toyota part numbers:
BMW Front Right (RH): 34 11 6 860 912 | 34 10 8 858 706 | 34 10 7 915 322 | 34 10 6 880 076
TOYOTA GR SUPRA: 43516-WAA02 (LH) | 43512-WAA02 (RH)
Confirmed Fitment (Vehicles with 348x36mm Front Setup)
M240i / M240i xDrive
318i, 320i, 330i, 330Li, M340i (inc. xDrive & Mild-Hybrid)
316d, 318d, 320d, 330d, M340d (inc. xDrive & Mild-Hybrid)
320e, 330e Plug-in-Hybrid (inc. xDrive)
420i, 430i, M440i, 420d, 430d, M440d (inc. xDrive & Mild-Hybrid)
BMW i4 eDrive35, eDrive40, M50 AWD
520i, 530i, 540i (inc. xDrive & Mild-Hybrid)
518d, 520d, 523d, 525d, 530d, 540d (inc. xDrive & Mild-Hybrid)
520e, 530e, 545e Plug-in-Hybrid (inc. xDrive)
(Note: Does not fit G60/G61 2023+ models)
630i, 640i, 620d, 630d, 640d (inc. xDrive & Mild-Hybrid)
730i, 740i, 725d, 730d, 740d, 740e, 745e (inc. Ld / Li / xDrive with 348mm front brakes)
840i, 840d (inc. xDrive & Mild-Hybrid)
X3 / X4: 18d, 20d, 25d, 30d, M40d | 20i, 30i, M40i | 30e Hybrid (models equipped with 348mm discs)
X5 / X6 / X7: 25d, 30d, 40d | 30i, 40i | 45e Hybrid (models equipped with 348mm discs)
BMW Z4 M40i (3.0 Turbo)
Toyota GR Supra 3.0 & 3.0 GR (A90 chassis)
